INNOVATIVE DESIGN A totally innovative design approach reclassifies the state of the art industry, enabling the creation of modular machines made up totally of components employing CAD-CAM technology. The VETROMAC Team controls all the construction phases directly; concept design, 3D design, mechanical machining of individual details by CNC machining centres, assembling and testing of machines, are all totally in-house processes. All this with obvious advantages: Strict quality control. Absolute uniformity and repeatability with the possibility of interchanging any component (including the cloth panel) without any need for any adjustments. Cutting speed ​​and precision never seen before; similar and sometimes even higher than expensive machines with linear motors. Very low wear due to a mechanically perfect construction. Possibility to upgrade machines previously built with the addition of the latest developments, up to the possibility of changing the size of the machine itself.
CNC GLASS CUTTING MACHINES
Welcome to GlassCuttingTables.com
SLIDING SYSTEM The sliding system of the bridge are made with a pinion-rack system. The racks and the pinions are tempered and refaced. They have a ± 0.02 mm tolerance with 1.20 MT (47.24 in) length. The teeth om the racks are turned towards low. One pinion is placed on the two sides of the bridge, to keep always perpendicular the bridge to the cutting table during the acceleration and deceleration phases. On both sides of the table is applied one linear guide and one rack, to obtain a overall bridge stability during the cutting cycle.
NORTH AMERICAN SUPPORT Atwood Sales is the agent for Vetromac in Canada and USA.  We have a Vetromac partner technician based out of Chicago and store parts in our office near Toronto .   Designed to require minimal service, our technician is often available to help with real time issues.
ITALIAN QUALITY AT AN AFFORDABLE PRICE An excellent project needs skill and passion to achieve perfection. The “100% made in Italy” construction of the VETROMAC machines is the feather in the hat that ensures that each single machine is assembled with passion and ability to reach a working life of over twenty years as per Italian tradition. Every single machine component is chosen with the utmost care from the best suppliers on the market - all this at a very competitive price.
CUTTING HEAD Well designed low friction piston cutting head with edge safety system that is durable and will give years of trouble-free glass cutting.
Pickering, ON Canada +1-416-342-7547 +1-647-669-5430 sales@atwoodsales.com  http://www.atwoodsales.com
ATWOOD SALES INC Glass industry Machines & Tooling
Mobile Glass Handling Solutions
Glass Storage, Dollies, Other
CNC Glass Cutting Tables
Glass Fabrication Machines
Quick Change Wheel System

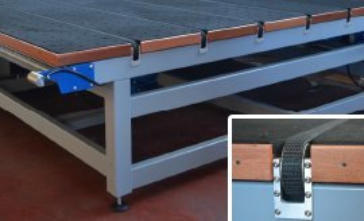

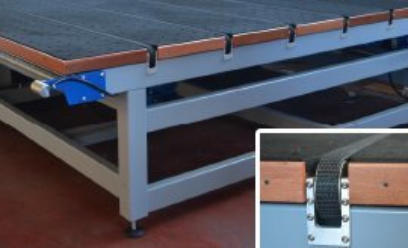

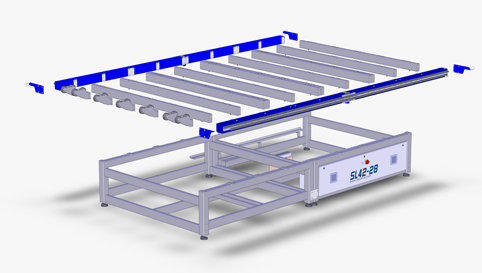

CONCEPT OF PRODUCTION AND ASSEMBLY We have developed a new concept of building machines, every single part of the machine is designed with 3D CAD technology, processed by CAD CAM and machined with a CNC Working Center.This innovative system is the only one that can guarantee perfect uniformity and constant quality of all the machines that are being built and every single part of the machine can be easy replaced if needed, even the felt table surface.The machines assembly is divided into specific steps, controlled by a management software, which supports and guides our technicians during the various stages of assembly, the following pictures is an example of the assembly steps:
INNOVATIVE DESIGN A totally innovative design approach reclassifies the state of the art industry, enabling the creation of modular machines made up totally of components employing CAD-CAM technology. The VETROMAC Team controls all the construction phases directly; concept design, 3D design, mechanical machining of individual details by CNC machining centres, assembling and testing of machines, are all totally in-house processes. All this with obvious advantages: Strict quality control. Absolute uniformity and repeatability with the possibility of interchanging any component (including the cloth panel) without any need for any adjustments. Cutting speed ​​and precision never seen before; similar and sometimes even higher than expensive machines with linear motors. Very low wear due to a mechanically perfect construction. Possibility to upgrade machines previously built with the addition of the latest developments, up to the possibility of changing the size of the machine itself.
EXTENDED WARRANTY Total control of the “in-house” production phasees and the computerised precision obtained with all the CNC machining operations, result in a durability and reliability that allow us to grant warranty beyond industry norms.  4 years or 10,000 working hours, whichever comes first.
EXCELLENT AFTER- SALES SERVICE The intrinsic quality of our machines reduces the demand for assistance, thus reducing the machine stops and the need for post-sales assistance.  This results in our technicians being more readily available to assist you.  Remote software connectivity allow them to connect from wherever they are in real time.
CNC GLASS CUTTING MACHINES
SLIDING SYSTEM The sliding system of the bridge are made with a pinion-rack system. The racks and the pinions are tempered and refaced. They have a ± 0.02 mm tolerance with 1.20 MT (47.24 in) length. The teeth om the racks are turned towards low. One pinion is placed on the two sides of the bridge, to keep always perpendicular the bridge to the cutting table during the acceleration and deceleration phases. On both sides of the table is applied one linear guide and one rack, to obtain a overall bridge stability during the cutting cycle.

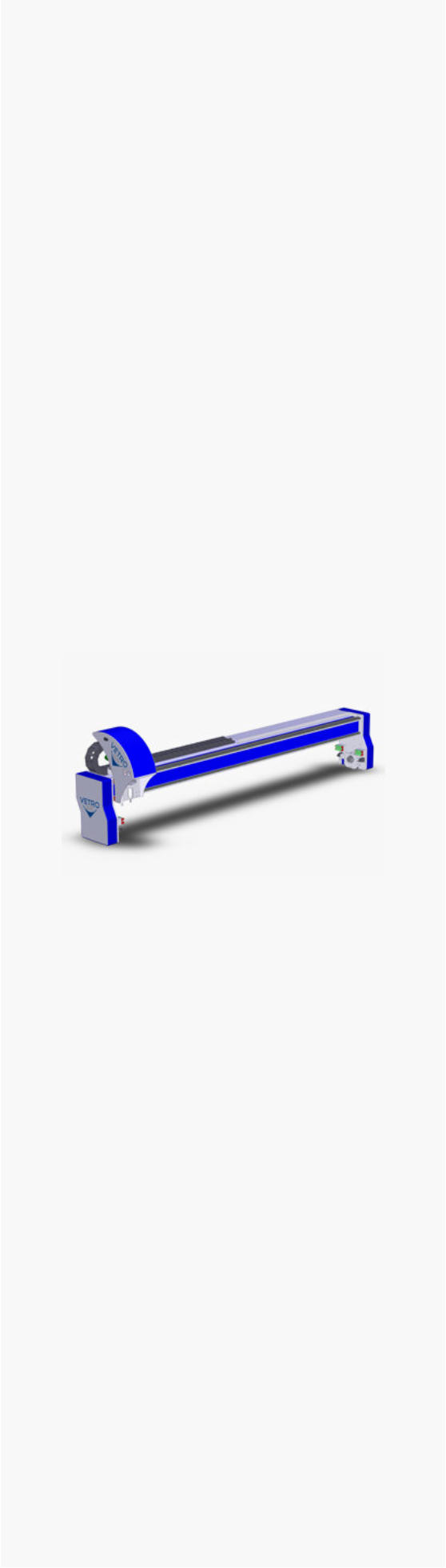

CUTTING BRIDGE The cutting bridge is made in rigid steel. The whole system is very stable and insensitive to temperature changes, assuring minimum wear and tear. The cut trolley is made in aluminum. The cutting head is made with special machines with hundredth tolerances. The up and down system of the cutting head is guided by a system with re- circulation of ball-bearings, to reduce the friction as much as possible and guarantee the cutting head response to glass scoring.
CUTTING PRESSURE SYSTEM The cutting head is equipped with a unique dual management system for cutting pressure. If the automatic proportional valve doesn’t work properly, it is possible to switch to manual mode simply by rotating the appropriate switch, from Auto to Manual and continue cutting.
ITALIAN QUALITY & AFFORDABLE An excellent project needs skill and passion to achieve perfection. The “100% made in Italy” construction of the VETROMAC machines is the feather in the hat that ensures that each single machine is assembled with passion and ability to reach a working life of over twenty years as per Italian tradition. Every single machine component is chosen with the utmost care from the best suppliers on the market -- all this at a very competitive price.
NORTH-AMERICAN  SUPPORT Atwood Sales is the agent for Vetromac in Canada and USA.  We have a Vetromac partner technician based out of Chicago and store parts in our office near Toronto.  Designed to require minimal service intervention, our technicians are often available to help with real time issues.
