SA40-26 Technical data - similar for other sizes

Max. workable glass sheet mm. 4000 x 2600  (157.4” x 102.3”).

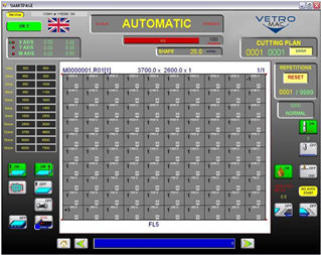

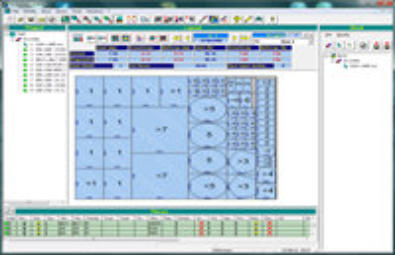

Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 2100 (4630 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power  Kw 12 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 180m/min (590 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Pneumatic breaker bars, Dual Air Blowers for steady glass floatation.  Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems  with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.
Pickering, ON Canada +1-416-432-7547 +1-647-669-5430 sales@atwoodsales.com  http://www.atwoodsales.com
ATWOOD SALES INC Glass industry Machines & Tooling
Mobile Glass Handling Solutions
Glass Storage, Dollies, Other
CNC Glass Cutting Tables
Glass Fabrication Machines
Quick Change Wheel System

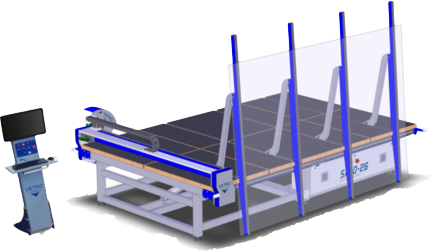

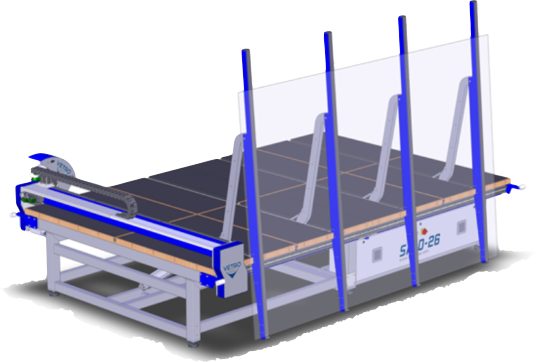

SA40-26 *

Max. workable sheet size mm  4000 x 2600

inches 157.4” x 102.3”  * Other sizes available
CNC GLASS  CUTTING MACHINES

SA26-19 Technical data

Max. workable glass sheet mm. 2600 x 1900  (102.3” x 74.8”).

Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 1600 (3527 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power  Kw 8 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 220m/min (721 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Pneumatic breaker bars, Dual Air Blowers for steady glass floatation.  Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems  with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.

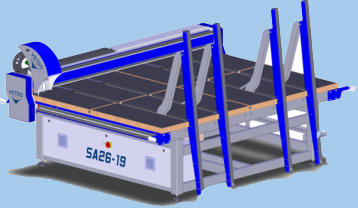

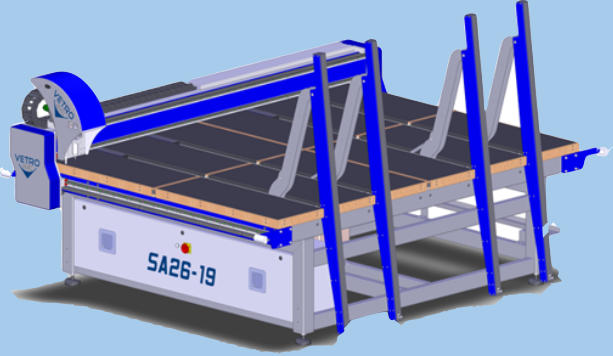

SA26-19

Max. workable sheet size mm  2600 x 1900

inches 102.3” x 74.8”
Welcome to GlassCuttingTables.com
CNC GLASS  CUTTING MACHINES

Options

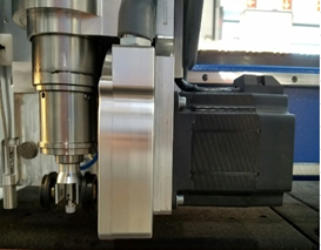

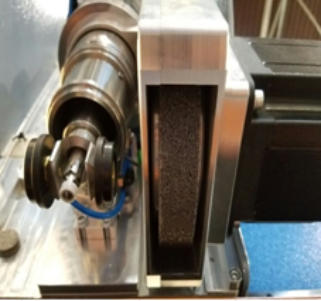

Edge Deletion for Soft Coat Low E Glass- with 125mm brush for production shops.

Edge Deletion for Soft Coat Low E Glass- with 20mm brush for lower volume shops.

Additional Options:

Vinyl Film Cutting Import DXF’s and XLS Files Label Printer at Table PC Extra Optimization Licences
Layout SA26-19
Layout SA40-26

SL40-26 Technical data -

similar for other sizes

Max. workable glass sheet mm. 4000 x 2600

(157.4” x 102.3”).

Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 2100 (4630 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power  Kw 12 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 180m/min (590 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems  with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.
Pickering, ON Canada +1-416-432-7547 +1-647-669-5430 sales@atwoodsales.com  http://www.atwoodsales.com
ATWOOD SALES INC Glass industry Machines & Tooling
Mobile Glass Handling Solutions
Glass Storage, Dollies, Other
CNC Glass Cutting Tables
Glass Fabrication Machines
Quick Change Wheel System

SA40-26 *

Max. workable sheet size mm  4000 x 2600

inches 157.4” x 102.3”  * Other sizes available
CNC GLASS  CUTTING MACHINES

SA26-19 Technical data

Max. workable glass sheet mm. 2600 x

1900  (102.3” x 74.8”).

Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 1600 (3527 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power  Kw 8 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/- 0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 220m/min (721 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Pneumatic breaker bars, Dual Air Blowers for steady glass floatation.  Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems  with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.

SA26-19

Max. workable sheet size mm  2600 x 1900

inches 102.3” x 74.8”
CNC GLASS  CUTTING MACHINES

Options

Edge Deletion for Soft Coat Low E Glass- with

125mm brush for production shops.

Edge Deletion for Soft Coat Low E Glass - with

20mm brush for lower volume shops.

Additional Options:

Vinyl Film Cutting Import DXF’s and XLS Files Label Printer at Table PC Extra Optimization Licences
Layout SA26-19
Layout SA40-26
